Drake

Capacity / Weight / Dimensions

• Sleeps up to 6 (up to 7 including sofa)
• Tri-Axle Trailer Chassis: 30′ length x 8.5′ width x 13′-4″ overall height
• Hitch Weight: 2,220 lbs.*
• GVWR (Maximum Trailer Capacity): 21,000 lbs.*
• Unit Dry Weight: 16,700 lbs.*
• Carrying Capacity: 4,300 lbs.*

* Weight subject to change based on specifications

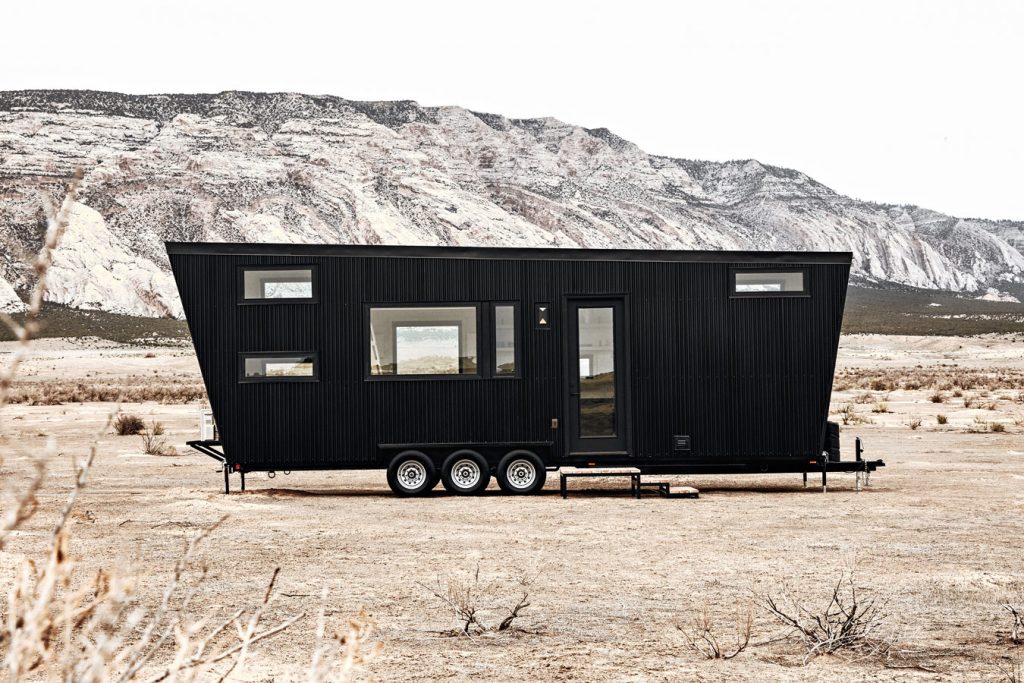

Structure & Exterior

• Insulation: Closed cell spray (floor, walls and roof)
• Maintenance-free black corrugated metal siding
• 14 Windows: Dual Pane, Tempered (12 operable, 2 fixed)

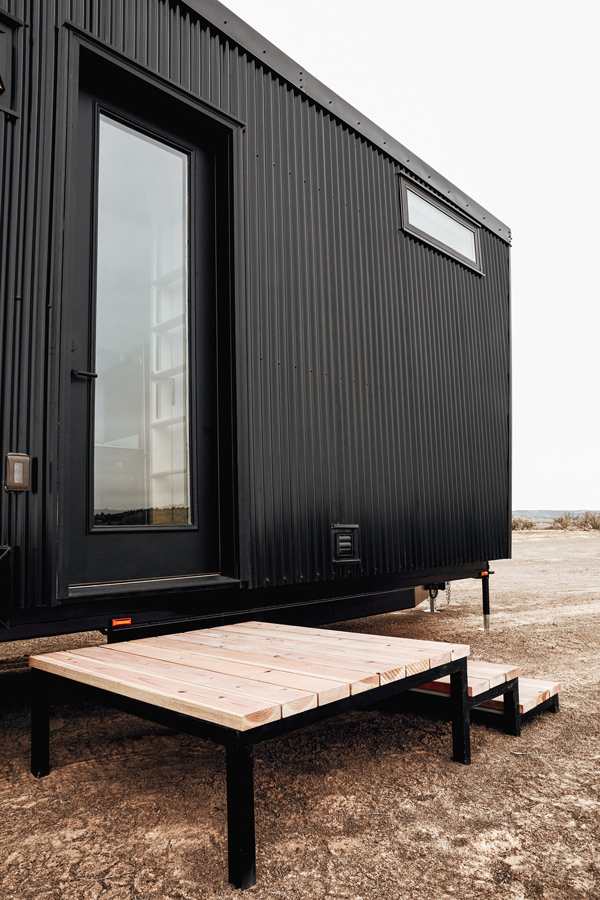

• 8′ x 3′ full light entry door
• Entry steps
• (5) Stabilizer Jacks (Crank Down)

Systems

• Electrical Input: 50AMP
• Tankless Hot Water Heater (Propane; RV-rated)
• (1) Vented Mini Split Heating & AC System (with handheld controller)
• Covered Propane Tanks: (2) 40 lbs mounted tanks
• Standard RV Water & Sewer Connections (no holding tanks)
• Washer & Dryer Combo Unit: Vented; 1.5 cu. ft.; 120V / 60Hz / 11AMP

Interior

• White-Washed Pine (walls & ceilings)
• Cellular Shades (installed on most windows & door)
• 10’+ Ceilings throughout
• LED Can Lighting throughout (warm; some dimmable)
• Waterproof Luxury Vinyl Plank Flooring
• Ample Standard Electrical Outlets and USB Ports throughout

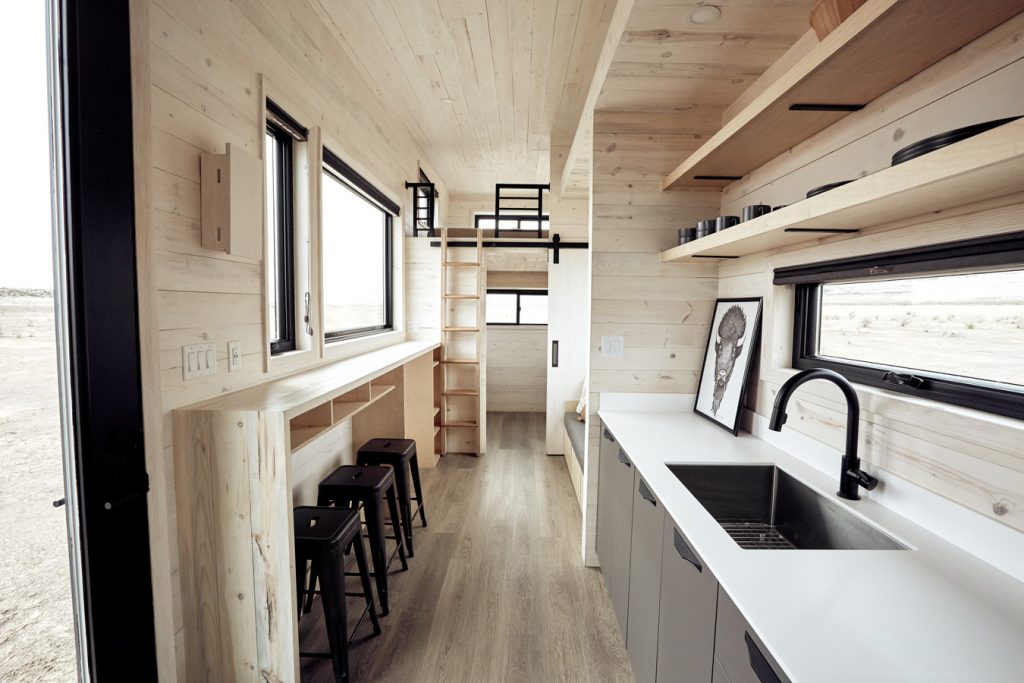

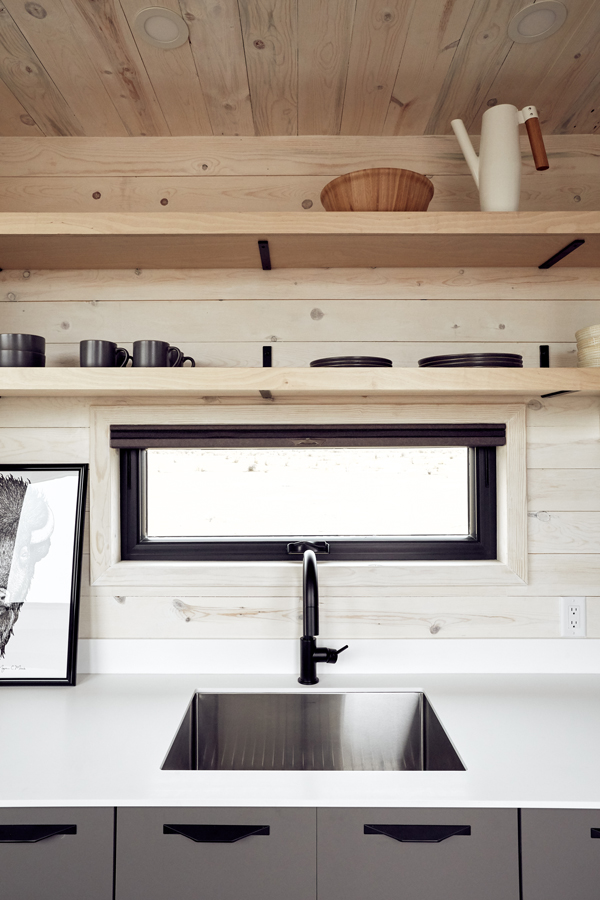

Kitchen

• Refrigerator & Freezer (Stainless Steel or Panel Ready options)
• 3 Burner Stainless Steel LP Gas Cooktop (with cast iron top grates)
• Stainless Steel LP Gas Oven (with LED knobs & digital thermostat)
• Cooktop Vent
• Solid Surface Countertops
• Stainless Steel Modern Kitchen Sink
• Black Matte Modern Kitchen Faucet with Pull-Out Spray
• Custom Acrylic Lower Cabinets with Black Matte Pulls*
• Upper Open Shelving with Integrated LED Counter Lighting*

* Dimensions & Finishes subject to minor changes

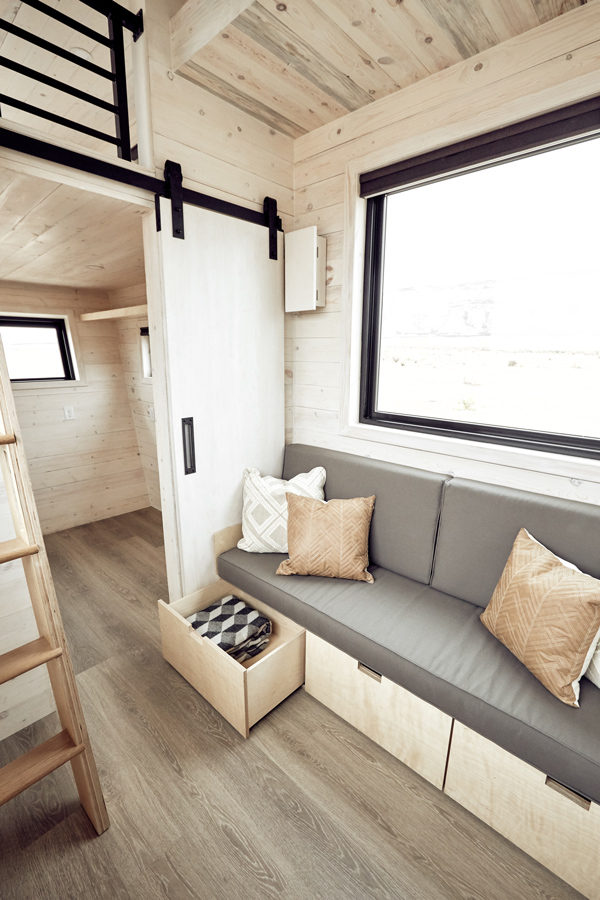

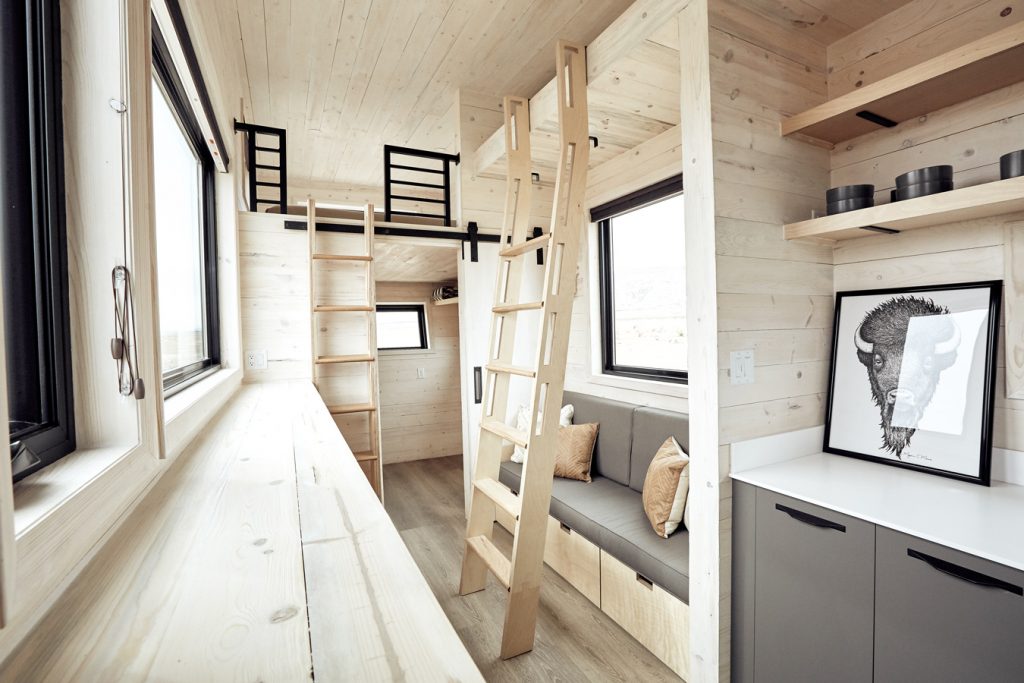

Living

• Built-In Sofa with Custom Sunbrella Cushions
• 3 Large Drawers under Sofa (soft-close)
• 10’+ bar top for working or dining
• Built-In Shelving for Laptops, AV equipment, etc.
• Under-Counter TV Connection with ENT Tubing in wall for hiding cords
• Almost 18′ of Storage on Soffit (accessed with custom multi-position ladder)

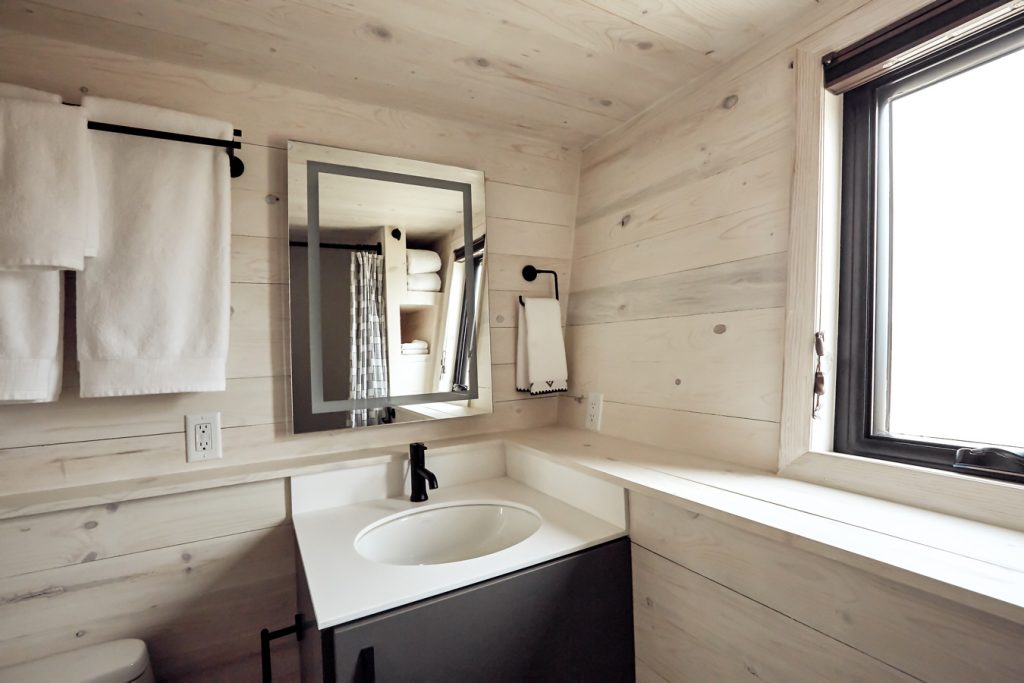

Bathroom

• Full 30” x 60” Bathtub/Shower with Solid-Surface Wall Surrounds
• Black Matte Modern Faucets & Shower Trim
• Black Matte Towel Bars, Robe Hooks & Toilet Paper Holder
• One-Piece Toilet
• Bathroom Vent Fan
• Solid Surface Vanity with Lighted Mirror
• Built-In Linen Storage and Prep Ledge
• Top-Down, Bottom-Up Custom Shades on Bathroom Window

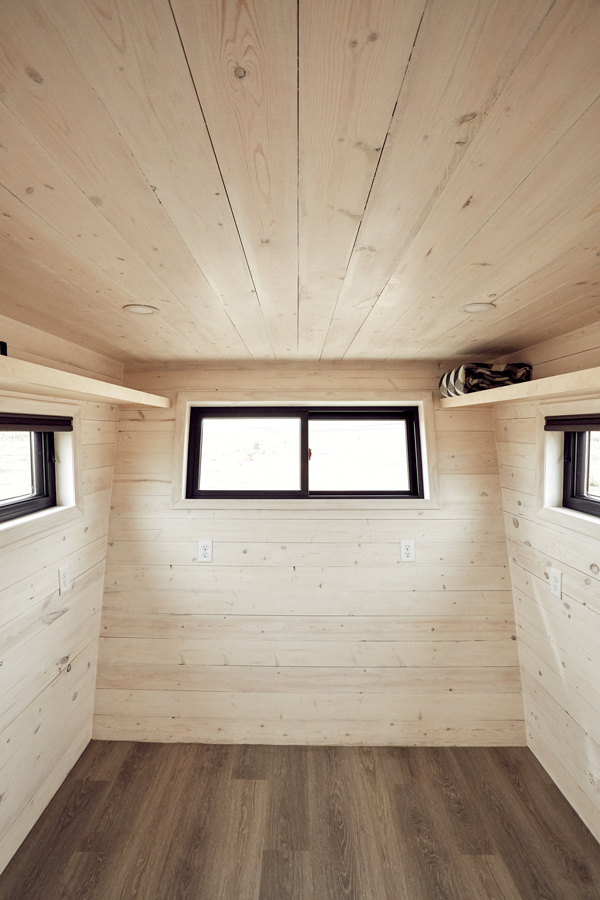

Bedrooms / Lofts / Flex Room

• Master Loft: Fits up to a king mattress
• Secondary Loft: Fits up to a queen mattress
• Main-Level Flex Room: Standard option (as pictured) includes (2) 2′ Wide Custom Built-In Closets with Hanging Rod, Drawers & Shelves; Built-In Upper Shelving; Barn Door. Options can be designed to accommodate a platform queen mattress, bunk beds, office, studio, etc.
• Standard Electrical Outlets & USB Ports
• Egress Windows in all Possible Sleeping Areas
• Recessed LED Lighting with Dimmers
• Loft Railing
• Custom Multi-Position Ladders for Loft & Soffit Storage Access
